Built Lighter. Built Smarter. Built to Perform.

Hazen designs and builds its own ranging tools giving us full control over performance, reliability, and innovation. Each tool in our kit is purpose-built for the demands of directional drilling, with the field-proven results to back it up.

Wireless (EM)

  • No trips for wire
  • Faster setup and connections
  • No charge for wire or consumables
  • Compatible with selection of logging tools (Gamma, Resistivity, etc.)
  • Can be used with Rotary Steerable Systems

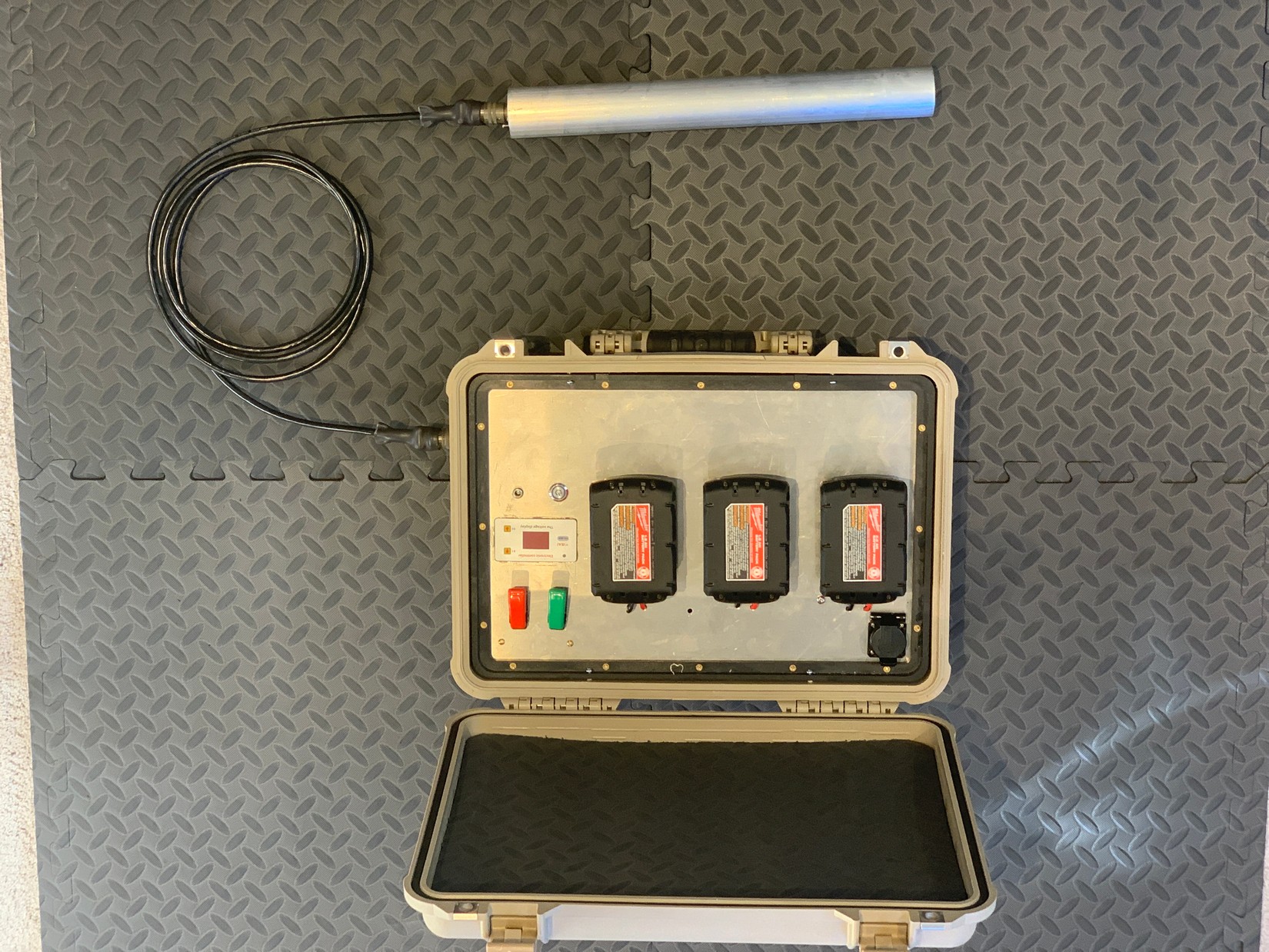

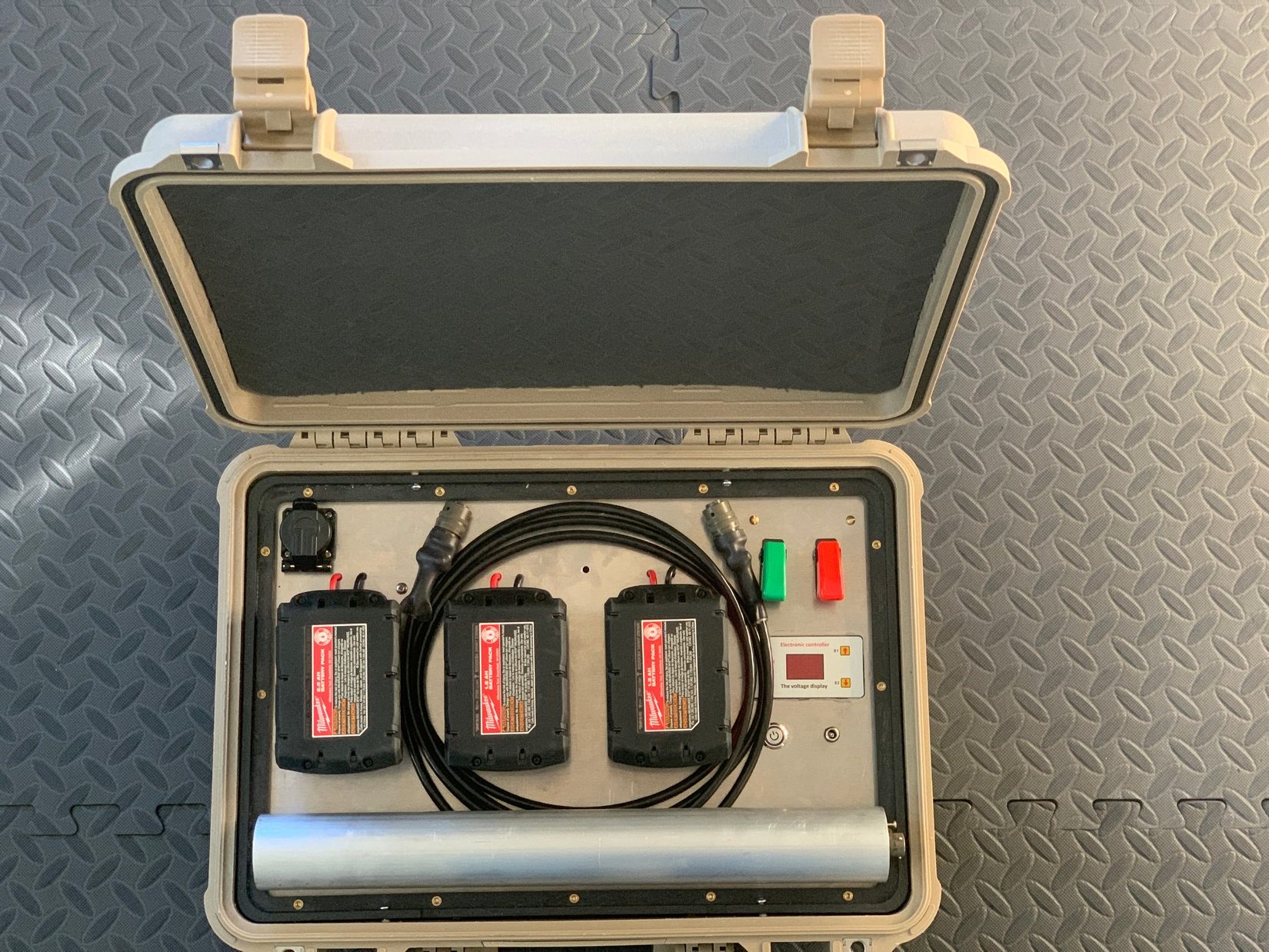

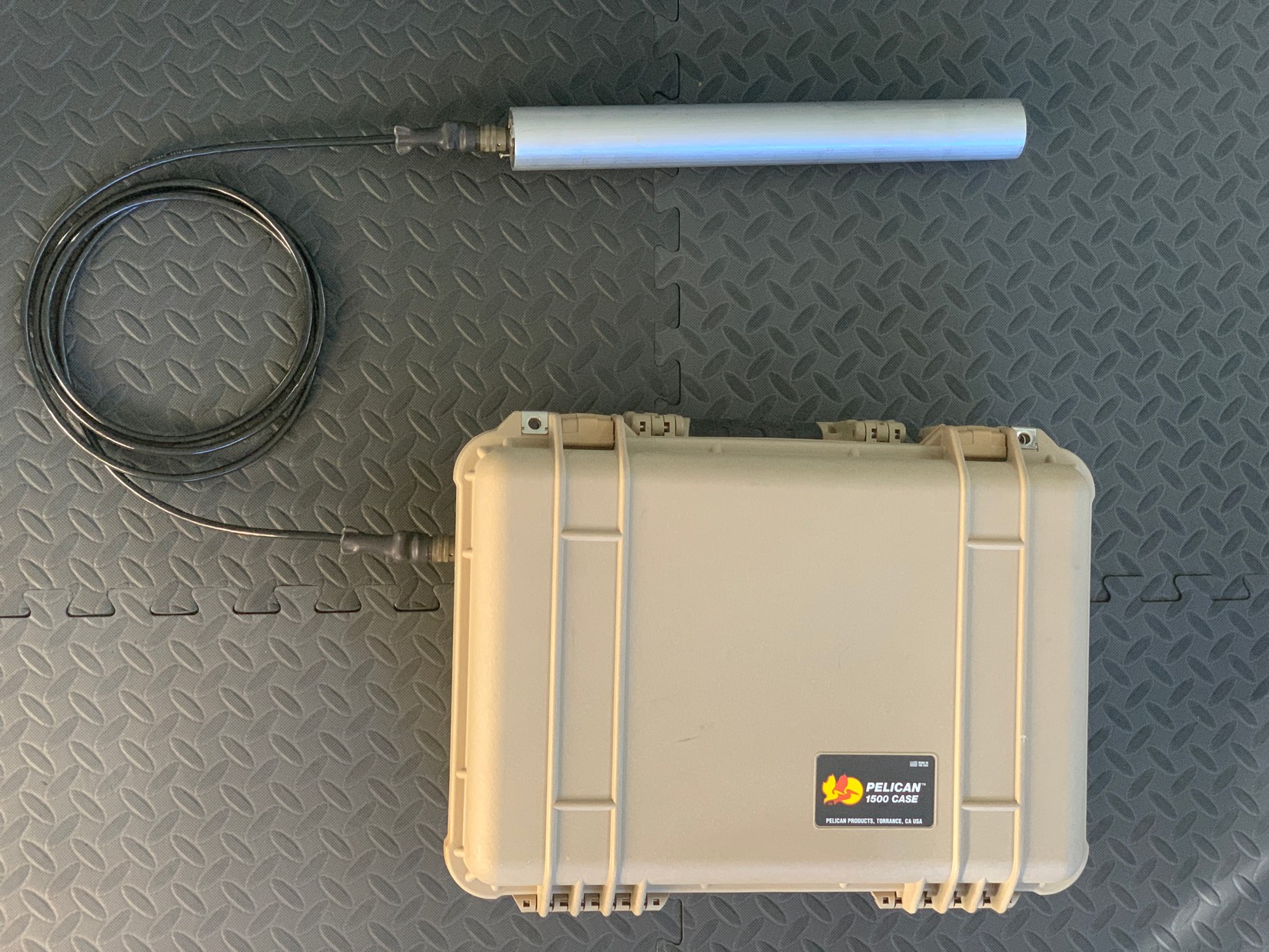

SPR
Surface Ranging Tool

Provides proximity data without the use of a surface coil. As a stand-alone light-weight system, one person can place the SPR – (Single Point Ranging) at any position near the wellbore path to receive data. Using our onboard survey system, the tool defines its position and orientation at each deployment. There is no need for third party survey verification.

  • No surface coil setup time, access or clearing of ROW or return loop.
  • No cost for wire or consumables
  • GNSS survey allows “Off-Path” placement areas. (Archeological, Urban/Private), Dangerous)
  • Built in redundancy

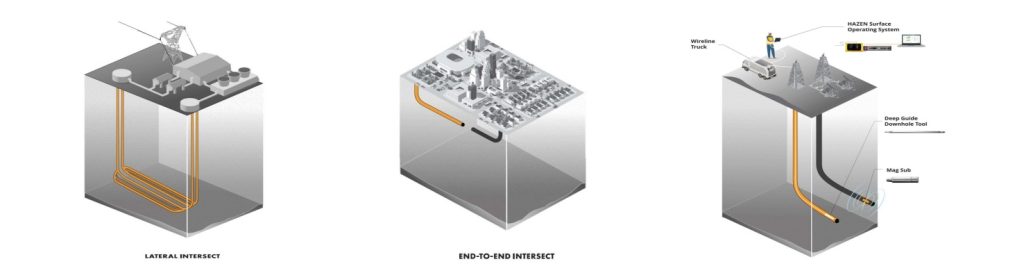

Deep Guide — Downhole Tool / Deep Guide Sensor

Wireline Conveyed Tool
  • Drill pipe gravity, or tractor & pump down

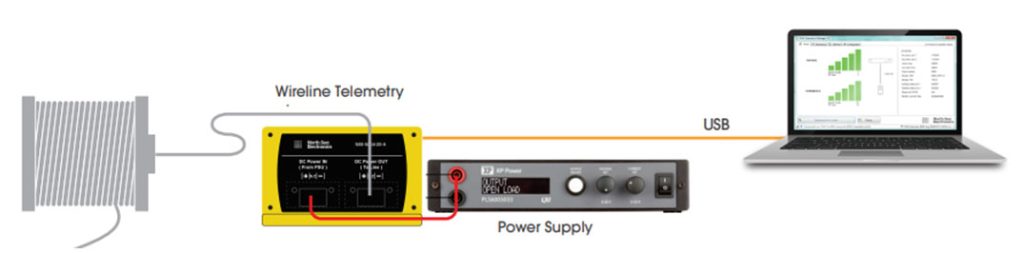

Mono-conductor Telemetry System
  • High power wireline filter – 600 Vdc, up to 2 Amps DC
  • Auto correct for wireline modulation, gains and frequencies
  • Adaptive filter tuning for maximum signal to noise ratio
Performance
  • 20,000psi / 1,380 bar pressure rating
  • 351°F / 177°C temperature rating
  • OD: 2.125” / 54mm
  • External temperature and pressure sensors
  • Detection range +400’ / +120m

DC Loop Ranging

AC Loop Raging

Walkover

Bedrock™ – Purpose Built, Accessible, User Friendly

Built by users with industry feedback Bedrock™ offers multiple features that allow the user to easily navigate and interact with the program and data.
  • A software application suite support Hazen technology.
  • Ranging specific applications and modules aimed at simplifying planning, visualization and operations
  • Collaborative space for ranging projects.
Learn More

Hazen Magnetic Bit Sub

  • Hazen Patented design that is customizable to the project
  • Shorter with same magnetic density as standard sub reduces directional influence.
  • More magnetic density at same length as standard sub extends range.

Frequently Asked Questions? - HDD

If you still have more questions, don’t hesitate to reach out with any other questions you may have.

Ask Now

Yes. NMDC and components are made to be easily picked up on HDD rigs with shorter make up lengths.

No. Hazen is happy to sell or rent kits and provide training and support for our technologies.

Today we are using 2 people per shift to deliver a full directional service.

Hazen is working towards a remote (ROC) style service soon which will reduce to 1 person per shift.

Hazen’s combination of technologies means no surface loop is required, and positional information is available at the bit which means data at the casing shoe.

Intersecting bores or other targets is faster and more accurate.

Our unique algorithms and sound processes also provide a more accurate positional surveys. Added services like survey management / corrections
further improve the accuracy.

Hazen’s collaboration with Sharewell provides access to wireless gyro tools. Additionally, the combination of directional technology and process result in an accuracy and distance and intersect capability only reserved
for Gyro services previously but without the wire.

Yes.

Our tools go where others can't.

Ask us about tool availability for your region

Bedrock™ – Purpose Built, Accessible, User Friendly

Built by users with industry feedback Bedrock™ offers multiple features that allow the user to easily navigate and interact with the program and data.

Bedrock™ is developed specifically for direct measurement applications like HDD guidance shots and Ranging where discrete measurements are used to plot the position underground.

As a web application it as accessible on any device with a browser and does not require downloading of software or a dedicated device.

Built with the project cycle in mind Bedrock™ allows you to easily import or create bore paths, surface topography and offsets then track and report in real-time with 3D Visualization.

  • Independent and compatible with most steering and guidance data sets.
  • User friendly for field data entry and reporting via a tablet or phone.
  • Easy Real-time collaboration and reporting with shared access determined by the user.
  • Optimized for Hazen SPR and Deep Guide Services. (automation)

Hazen Magnetic Bit Sub

  • Proprietary patent pending design
  • Provides the same magnetic mass as conventional subs in half the size
  • Reduced impact on motor performance
  • Custom solutions available for specific client requirements
  • New design makes rotating magnet sub shorter and lower cost
  • Optional magnetic mass available based on depth requirement
  • At Bit measurements long before MWD
  • Measurements while Drilling (sliding or rotating) means directional input means optimized slides and faster build sections.
  • Measurement at casing shoe means driller can adjust to casing/bore angle as they exit.
  • Accurate positional data at 70m away
  • Detection of Trending Measurements at 90m away
  • Can be used with Rotary Steerable Systems

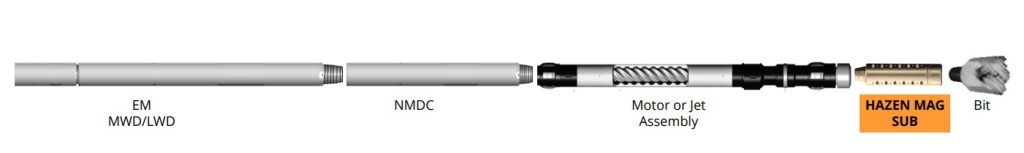

MAGNETIC BIT SUB – At Bit Measurement

• A short non-mag collar, with machined pockets and
permanent magnets installed
• The Mag Sub is added to drilling assembly between the
bit and mud motor, or anywhere on the BHA
• New Patented design improves Magnetic density and
superior magnetic mass per unit volume
• Shorter length keeps Bit-to-Bend small for better
directional response.
• At bit measurements and Reduced length
• When the Magnet Sub is rotated, a sinusoidal alternating
magnetic field is generated (AC).
